Just like you did to make a net of artificial cells.
Note the following :
B. We need an instance of each of our three cell types.

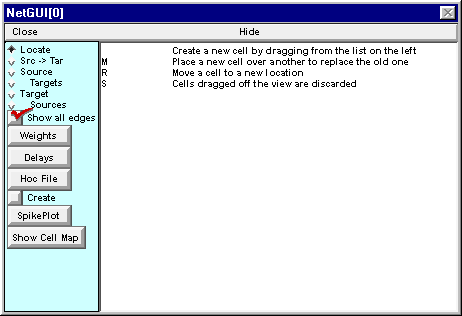

Click on the S and hold the mouse button down while dragging the new S-type cell to a convenient location in the network layout field. Release the mouse button and you will see a new cell labeled S0.
Do the same for the M and R type cells.

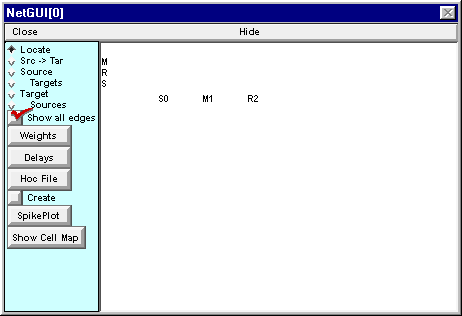

The Network Builder should look like this when you're done. For reasons that will soon be obvious, it's a good idea to place cells away from the dead center of the network layout field.
Next task: set up the network's architecture.
